The following queueing disciplines are supported: FCFS, LCFS-PR, PS and IS (Infinite Server). This function supports fixed-rate service centers or multiple server nodes. For general load-dependent service centers, use the function qncsmvald instead.

Additionally, the normalization constant $G(n)$, $n=0,\; \dots ,\; N$ is computed; $G(n)$ can be used in conjunction with the BCMP theorem to compute steady-state probabilities.

INPUTS

N

Population size (number of requests in the system, N ≥ 0). If N == 0, this function returns U = R = Q = X = 0

S(k)

mean service time at center $k$ (S(k) ≥ 0).

V(k)

average number of visits to service center $k$ (V(k) ≥ 0).

Z

External delay for customers (Z ≥ 0). Default is 0.

m(k)

number of servers at center $k$ (if m is a scalar, all centers have that number of servers). If m(k) < 1, center $k$ is a delay center (IS); otherwise it is a regular queueing center (FCFS, LCFS-PR or PS) with m(k) servers. Default is m(k) = 1 for all $k$ (each service center has a single server).

OUTPUTS

U(k)

If $k$ is a FCFS, LCFS-PR or PS node (m(k) ≥ 1), then U(k) is the utilization of center $k$, $0\; \le \; U(k)\; \le \; 1$. If $k$ is an IS node (m(k) < 1), then U(k) is the $traffic\; intensity$ defined as X(k)*S(k). In this case the value of U(k) may be greater than one.

R(k)

center $k$ response time. The $Residence\; Time$ at center $k$ is R(k) * V(k). The system response time Rsys can be computed either as Rsys = N/Xsys - Z or as Rsys = dot(R,V)

Q(k)

average number of requests at center $k$. The number of requests in the system can be computed either as sum(Q), or using the formula N-Xsys*Z.

X(k)

center $K$ throughput. The system throughput Xsys can be computed as Xsys = X(1) / V(1)

G(n)

Normalization constants. G(n+1) contains the value of the normalization constant $G(n)$, $n=0,\; \dots ,\; N$ as array indexes in Octave start from 1. $G(n)$ can be used in conjunction with the BCMP theorem to compute steady-state probabilities.

NOTES

In presence of load-dependent servers (i.e., if m(k)>1 for some $k$), the MVA algorithm is known to be numerically unstable. This issue manifests itself as negative values for the response times or utilizations. This is not a problem of the queueing toolbox, but an intrinsic limitation of MVA. This implementation prints a warning if numerical problems are detected; the warning can be disabled with the command warning("off", "qn:numerical-instability"). For product-form QNs with a single load-dependent server you may want to try the Conditional MVA algorithm implemented in qncscmva.

REFERENCES

• M. Reiser and S. S. Lavenberg, Mean-Value Analysis of Closed Multichain Queuing Networks, Journal of the ACM, vol. 27, n. 2, April 1980, pp. 313–322. 10.1145/322186.322195

This implementation is described in R. Jain , The Art of Computer Systems Performance Analysis, Wiley, 1991, p. 577. Multi-server nodes are treated according to G. Bolch, S. Greiner, H. de Meer and K. Trivedi, Queueing Networks and Markov Chains: Modeling and Performance Evaluation with Computer Science Applications, Wiley, 1998, Section 8.2.1, "Single Class Queueing Networks".

See also: qncsmvald, qncscmva

 S = [ 0.125 0.3 0.2 ];
 V = [ 16 10 5 ];
 N = 20;
 m = ones(1,3);
 Z = 4;
 [U R Q X] = qncsmva(N,S,V,m,Z);
 X_s = X(1)/V(1); # System throughput
 R_s = dot(R,V); # System response time
 printf("\t    Util      Qlen     RespT      Tput\n");
 printf("\t--------  --------  --------  --------\n");
 for k=1:length(S)
   printf("Dev%d\t%8.4f  %8.4f  %8.4f  %8.4f\n", k, U(k), Q(k), R(k), X(k) );
 endfor
 printf("\nSystem\t          %8.4f  %8.4f  %8.4f\n\n", N-X_s*Z, R_s, X_s );

	    Util      Qlen     RespT      Tput
	--------  --------  --------  --------
Dev1	  0.6665    1.9906    0.3733    5.3319
Dev2	  0.9997   16.1767    4.8543    3.3325
Dev3	  0.3332    0.4997    0.2999    1.6662

System	           18.6670   56.0156    0.3332



 SA = [300 40];
 p = .9; P = [  0  1; 1-p  p ];
 VA = qncsvisits(P);
 SB = [300 30];
 p = .75; P = [  0  1; 1-p  p ];
 VB = qncsvisits(P);
 Z = 1800;
 NN = 1:100;
 XA = XB = XA_mva = XB_mva = zeros(size(NN));
 for n=NN
   [nc XA(n)] = qncsbsb(n, SA, VA, 1, Z);
    [U R Q X] = qncsmva(n, SA, VA, 1, Z);
    XA_mva(n) = X(1)/VA(1);
   [nc XB(n)] = qncsbsb(n, SB, VB, 1, Z);
    [U R Q X] = qncsmva(n, SB, VB, 1, Z);
    XB_mva(n) = X(1)/VB(1);
 endfor

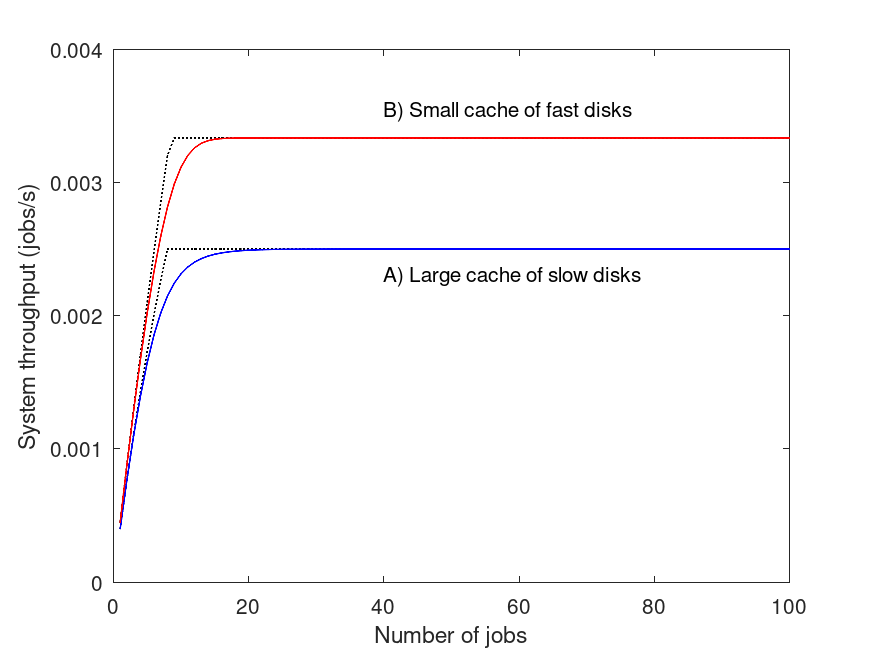

 plot(NN, XA, ":k", "linewidth", 1,
      NN, XA_mva, "-b", "linewidth", 1,
      NN, XB, ":k", "linewidth", 1,
      NN, XB_mva, "-r", "linewidth", 1);
 idx = 40;
 displ = 2e-4;
 text( NN(idx), XA(idx)-displ, "A) Large cache of slow disks");
 text( NN(idx), XB(idx)+displ, "B) Small cache of fast disks");
 ax = axis();
 ax(3) = 0;
 ax(4) = 1.2*max([XA XB]);
 axis(ax);
 xlabel("Number of jobs");
 ylabel("System throughput (jobs/s)");
